Diffraction project datasets 6vji
Project details
| Title |

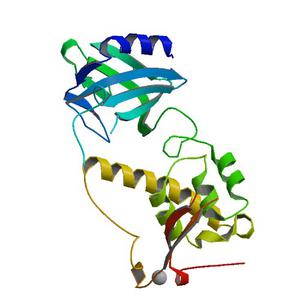

Structure of mammalian NEIL2 from Monodelphis domestica |
| Authors |
Eckenroth, B.E., Doublie, S. |
| R / Rfree |
0.25 / 0.28 |
| Unit cell edges [Å] |
67.89 x
67.89 x
149.13
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

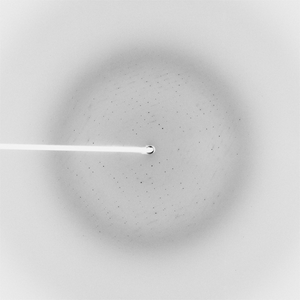

Dataset 6vji_B1-Nat_1.#### details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
54.0 |
| Wavelength [Å] |
1.03321 |
| Experiment Date |
2014-07-01 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

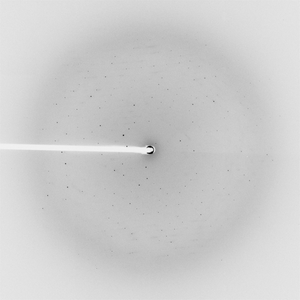

Dataset 6vji_B6-Zn_2_1.#### details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
90.0 |
| Wavelength [Å] |
1.28295 |
| Experiment Date |
2014-07-01 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

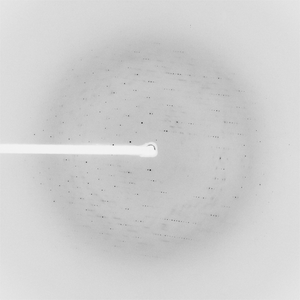

Dataset 6vji_C10-SeMetPeak.##### details
| Number of frames |
356 (1 - 356) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
228.0 |
| Wavelength [Å] |
0.97934 |
| Experiment Date |
2015-10-16 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

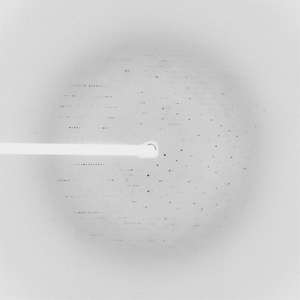

Dataset 6vji_C10-SeMetRem_2.##### details
| Number of frames |
305 (1 - 305) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.50 |
| Wavelength [Å] |
0.87000 |
| Experiment Date |
2015-10-16 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

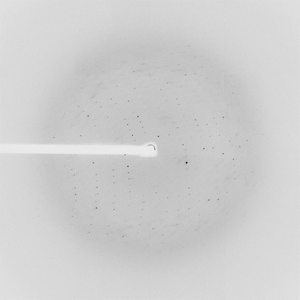

Dataset 6vji_C9-SeMetPeak.##### details
| Number of frames |
368 (1 - 368) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
60.0 |
| Wavelength [Å] |
0.97932 |
| Experiment Date |
2015-10-16 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

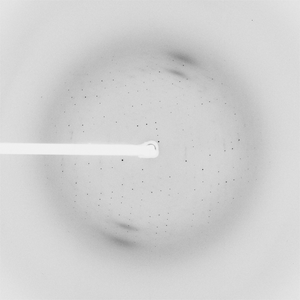

Dataset 6vji_C9-SeMetRem_2.##### details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.50 |
| Wavelength [Å] |
0.87000 |
| Experiment Date |
2015-10-16 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

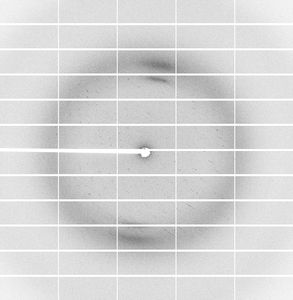

Dataset 6vji_D10_nat_####.cbf details
| Number of frames |
1378 (1001 - 2378) |
| Distance [mm] |
500.0 |
| Oscillation width [°] |
0.25 |
| Wavelength [Å] |
0.91986 |
| Experiment Date |
2014-03-16 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|

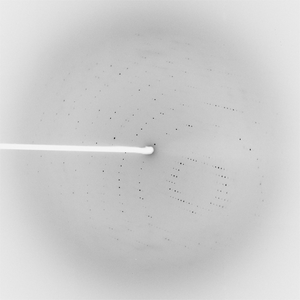

Dataset 6vji_D3-Iod_1.##### details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
91.0 |
| Wavelength [Å] |
1.77120 |
| Experiment Date |
2015-02-11 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

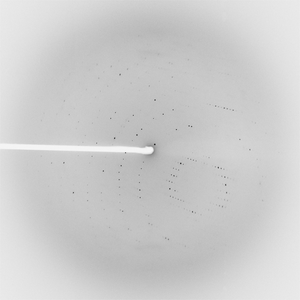

Dataset 6vji_D3-Iod_2.##### details
| Number of frames |
269 (1 - 269) |
| Distance [mm] |
225.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
91.0 |
| Wavelength [Å] |
1.77120 |
| Experiment Date |
2015-02-11 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

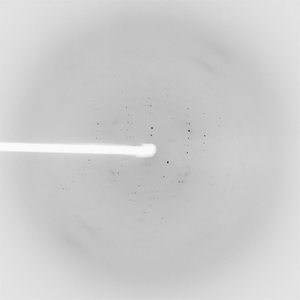

Dataset 6vji_D4-Pt_1.##### details
| Number of frames |
227 (1 - 227) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
90.803 |
| Wavelength [Å] |
1.07206 |
| Experiment Date |
2015-02-11 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

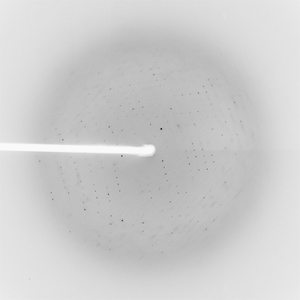

Dataset 6vji_D6-Au_1.##### details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
350.0 |
| Phi [°] |
-1.0 |
| Wavelength [Å] |
1.03965 |
| Experiment Date |
2015-02-11 |
| Equipment |
23-ID-B
at APS (Advanced Photon Source)
|

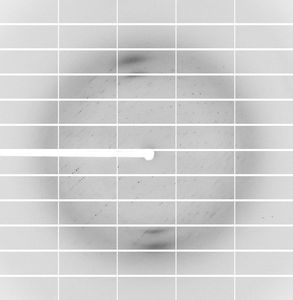

Dataset L7-210-284M_E6-SeMetPeak_#####.cbf details
| Number of frames |
480 (1 - 480) |
| Distance [mm] |
500.0 |
| Oscillation width [°] |
0.50 |
| Wavelength [Å] |
0.97942 |
| Experiment Date |
2016-06-30 |
| Equipment |
23-ID-D
at APS (Advanced Photon Source)
|
