Diffraction project datasets 6uke

  • Resolution: 1.62 Å
  • Space group: P 1 21 1
Download all images (1.1 GB)

Uniprot website for I3DBY6
PDB website for 6UKE
PDB validation report for 6UKE

doi:10.18430/m36uke

Project details

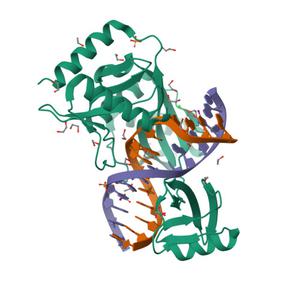

Title HhaI endonuclease in Complex with Iodine-Labelled DNA
Authors Horton, J.R., Cheng, X.
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 60.89 x 37.19 x 68.74
Unit cell angles [°] 90.0, 109.8, 90.0

Dataset 2ndday2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 40.0
Oscillation width [°] 0.50
Omega [°] -69.0
Kappa / Chi [°] 20.0
Phi [°] 60.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 2ndday2_####.img details

Number of frames 352 (401 - 752)
Distance [mm] 40.0
Oscillation width [°] 0.50
Omega [°] -69.0
Kappa / Chi [°] 20.0
Phi [°] 60.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 2ndday2_####.img details

Number of frames 342 (801 - 1142)
Distance [mm] 40.0
Oscillation width [°] 0.50
Omega [°] -69.0
Kappa / Chi [°] 20.0
Phi [°] 60.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 2ndday2_####.img details

Number of frames 360 (1201 - 1560)
Distance [mm] 40.0
Oscillation width [°] 0.50
Omega [°] -69.0
Kappa / Chi [°] 20.0
Phi [°] 60.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 2ndday2_####.img details

Number of frames 44 (1601 - 1644)
Distance [mm] 40.0
Oscillation width [°] 0.50
Omega [°] -69.0
Kappa / Chi [°] 20.0
Phi [°] 60.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 2ndday_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 40.0
Oscillation width [°] 0.50
Omega [°] -77.0
Phi [°] -180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset C1x01ds1_####.img details

Number of frames 1440 (1 - 1440)
Distance [mm] 40.0
Oscillation width [°] 0.50
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
