Diffraction project datasets 6tc2
- Resolution: 1.36 Å
- Space group: P 1 21 1
PDB website for 6TC2
PDB validation report for 6TC2
doi:10.18430/m3.irrmc.5585
Project details
| Title | Monoclinic human insulin in complex with p-coumaric acid |
| Authors | Triandafillidis, D.-P., Parthenios, N., Spiliopoulou, M., Valmas, A., Kosinas, C., Gozzo, F., Reinle-Schmitt, M., Beckers, D., Degen, T., Pop, M., Fitch, A., Wollenhaupt, J., Weiss, M.S., Karavassili, F., Margiolaki, I. |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 41.00 x 67.65 x 47.59 |
| Unit cell angles [°] | 90.0, 94.8, 90.0 |

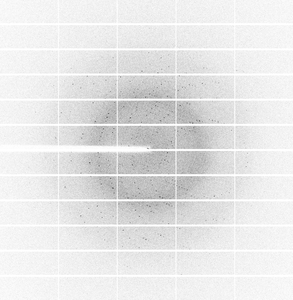

Dataset pcm24_25glyc_1_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 293.5 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | 0.0012 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.1 at BESSY II (Bessy II) |

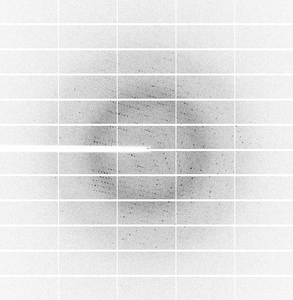

Dataset pcm24_25glyc_kappa20_1_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 293.4 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | 20.0013 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.1 at BESSY II (Bessy II) |
