Diffraction project datasets 6h5t
- Resolution: 1.69 Å
- Space group: I 4 2 2
PDB website for 6H5T
PDB validation report for 6H5T
doi:10.18430/m36h5t
Project details

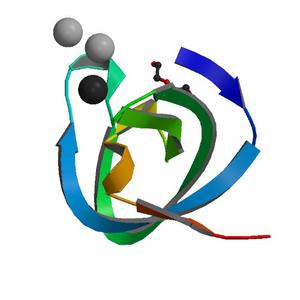

| Title | Intersectin SH3A short isoform |
| Authors | Driller, J.H., Gerth, F., Freund, C., Wahl, M.C., Loll, B. |
| R / Rfree | 0.18 / 0.19 |
| Unit cell edges [Å] | 86.79 x 86.79 x 141.77 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

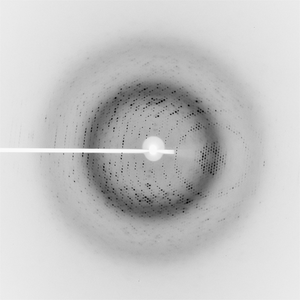

Dataset SH3-1_x2_1_###.img details
| Number of frames | 190 (1 - 190) |
| Distance [mm] | 170.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 15.0 |
| Wavelength [Å] | 0.89500 |
| Experiment Date | 2014-11-19 |
| Equipment | BL14.3 at BESSY II (Bessy II) |

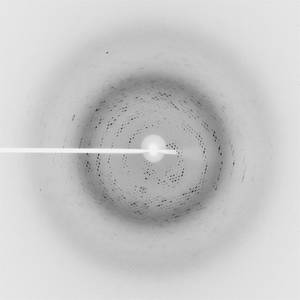

Dataset SH3-1_x3_1_###.img details
| Number of frames | 190 (1 - 190) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 85.0 |
| Wavelength [Å] | 0.89500 |
| Experiment Date | 2014-11-19 |
| Equipment | BL14.3 at BESSY II (Bessy II) |
