Diffraction project datasets 6cja
- Resolution: 1.7 Å
- Space group: P 21 21 21
PDB website for 6CJA
PDB validation report for 6CJA
doi:10.18430/M36CJA
Project details

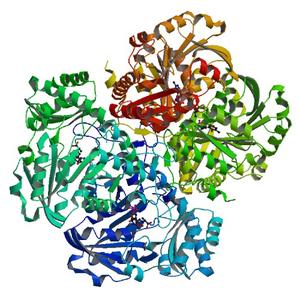

| Title | Crystal structure of Cystathionine beta-lyase from Legionella pneumophila Philadelphia 1 in complex with Alanyl-PLP and Serine |
| Authors | Abendroth, J., Lorimer, D.D., Horanyi, P.S., Edwards, T.E. |
| R / Rfree | 0.14 / 0.17 |
| Unit cell edges [Å] | 96.17 x 97.11 x 175.82 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

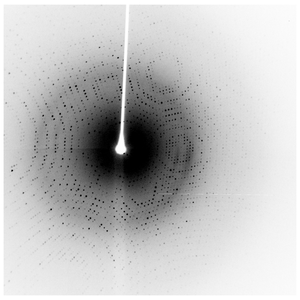

Dataset 295502h11_x_####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -80.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

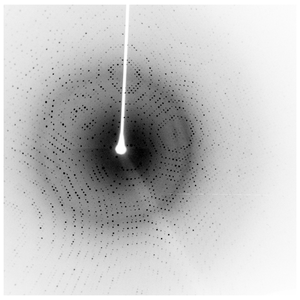

Dataset 295502h11_y_####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
