Diffraction project datasets 6967725_1vqr
- Method: SAD
- Resolution: 2.25 Å
- Space group: C 1 2 1
PDB website for 1VQR
PDB validation report for 1VQR
doi:10.18430/M31VQR
Project details
| Title | Crystal structure of a virulence factor (cj0248) from campylobacter jejuni subsp. jejuni at 2.25 A resolution |
| Authors | Xu, Q., Schwarzenbacher, R., McMullan, D., Abdubek, P., Agarwalla, S., Ambing, E., Axelrod, H., Biorac, T., Canaves, J.M., Chiu, H.J., Deacon, A.M., DiDonato, M., Elsliger, M.A., Godzik, A., Grittini, C., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Hornsby, M., Jaroszewski, L., Klock, H.E., Koesema, E., Kreusch, A., Kuhn, P., Lesley, S.A., Miller, M.D., Moy, K., Nigoghossian, E., Paulsen, J., Quijano, K., Reyes, R., Rife, C., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., White, A., Wolf, G., Hodgson, K.O., Wooley, J., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 123.14 x 122.09 x 96.90 |
| Unit cell angles [°] | 90.0, 120.6, 90.0 |

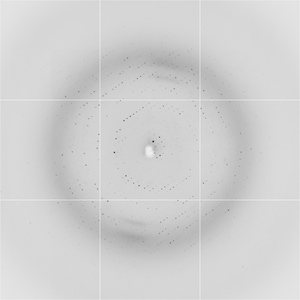

Dataset 12547_5_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 340.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 285.0 |
| Wavelength [Å] | 0.97896 |
| Experiment Date | 2004-11-11 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

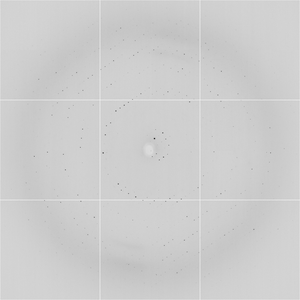

Dataset 12547_6_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 285.0 |
| Wavelength [Å] | 0.97896 |
| Experiment Date | 2004-11-11 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |
