Diffraction project datasets 6457846_2fyx

  • Method: Molecular Replacement
  • Resolution: 1.9 Å
  • Space group: P 32
Download all images (686.5 MB)

PDB website for 2FYX

doi:10.18430/M32FYX

Project details

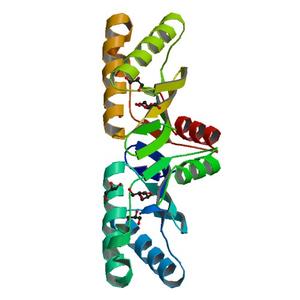

Title Crystal structure of a putative transposase (dr_0177) from deinococcus radiodurans r1 at 1.90 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 66.79 x 66.79 x 81.18
Unit cell angles [°] 90.0, 90.0, 120.0

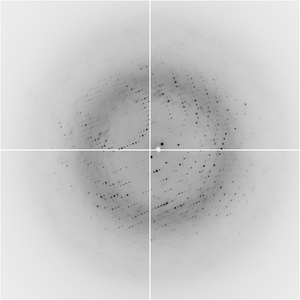

Dataset 11933_1_###.img details

Number of frames 92 (1 - 92)
Distance [mm] 150.0
Oscillation width [°] 1.00
Phi [°] 230.0
Wavelength [Å] 1.00000
Experiment Date 2004-08-25
Equipment 5.0.3 at ALS (Advanced Light Source)

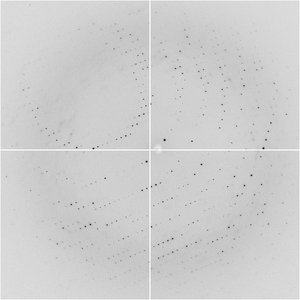

Dataset 11933_2_###.img details

Number of frames 45 (1 - 45)
Distance [mm] 250.0
Oscillation width [°] 2.00
Phi [°] 230.0
Wavelength [Å] 1.00000
Experiment Date 2004-08-25
Equipment 5.0.3 at ALS (Advanced Light Source)
