Diffraction project datasets 5v77
- Resolution: 1.85 Å
- Space group: P 65 2 2
PDB website for 5V77
PDB validation report for 5V77
doi:10.18430/M35V77
Project details

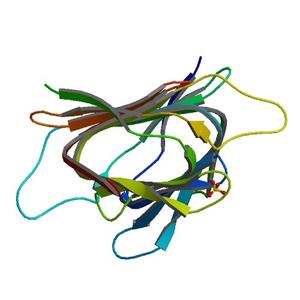

| Title | Crystal structure of an uncharacterized protein from Neisseria gonorrhoeae |
| Authors | Abendroth, J., Mayclin, S.J., Lorimer, D.D., Edwards, T.E. |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 107.36 x 107.36 x 87.79 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

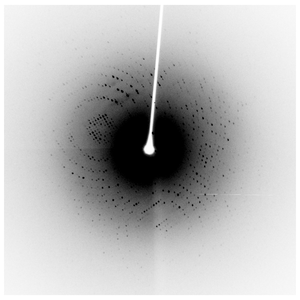

Dataset 284201at_tip_x_####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | 21IDF |

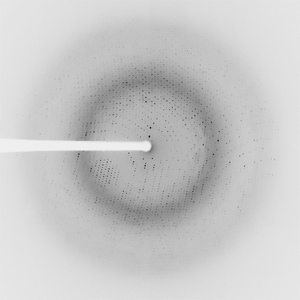

Dataset gsg8-9.### details
| Number of frames | 140 (1 - 140) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 80.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2017-02-24 |
| Equipment | 21IDF |
