Diffraction project datasets 5uxx
- Resolution: 2.45 Å
- Space group: P 32 2 1
PDB website for 5UXX
PDB validation report for 5UXX
doi:10.18430/M35UXX
Project details

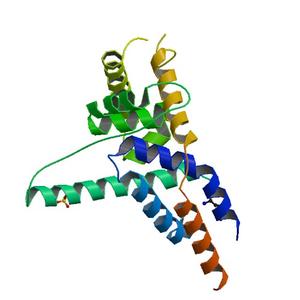

| Title | Co-crystal structure of the sigma factor RpoE in complex with the anti-sigma factor NepR from Bartonella quintana |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID), Fairman, J.W., Dranow, D.M., Sullivan, A.H., Lorimer, D., Edwards, T.E. |
| R / Rfree | 0.19 / 0.22 |
| Unit cell edges [Å] | 92.42 x 92.42 x 127.74 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

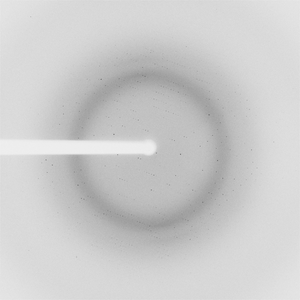

Dataset wst7-6.### details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 150.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2014-07-16 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
