Diffraction project datasets 5um0

  • Resolution: 1.85 Å
  • Space group: P 1 21 1
Download all images (1.0 GB)

PDB website for 5UM0
PDB validation report for 5UM0

doi:10.18430/M35UM0

Project details

Title Crystal structure of 2,3-bisphosphoglycerate-dependent phosphoglycerate mutase from Neisseria gonorrhoeae
Authors Abendroth, J., Lorimer, D., Edwards, T.E.
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 71.58 x 73.03 x 96.93
Unit cell angles [°] 90.0, 97.6, 90.0

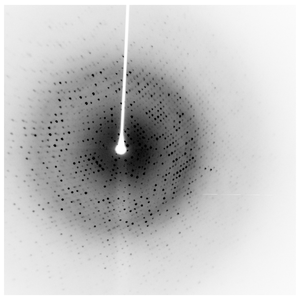

Dataset 284504b6_x_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -80.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

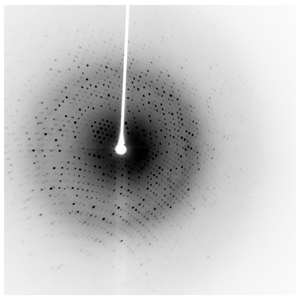

Dataset 284504b6_x_####.img details

Number of frames 30 (370 - 399)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.5
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

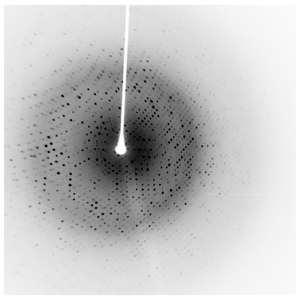

Dataset 284504b6_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -80.0
Kappa / Chi [°] 15.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
