Diffraction project datasets 5u4s
- Resolution: 1.4 Å
- Space group: P 21 21 21
PDB website for 5U4S
PDB validation report for 5U4S
doi:10.18430/M35U4S
Project details

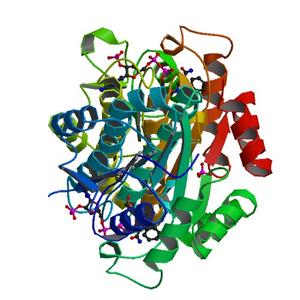

| Title | Crystal structure of a Short chain dehydrogenase from Burkholderia cenocepacia J2315 in complex with NADP. |
| Authors | Abendroth, J., Dranow, D.M., Lorimer, D.D., Edwards, T.E. |
| R / Rfree | 0.15 / 0.17 |
| Unit cell edges [Å] | 39.27 x 75.66 x 146.01 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

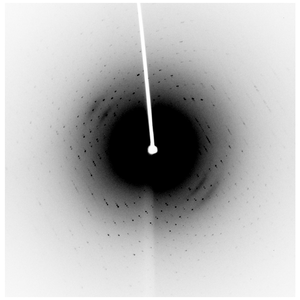

Dataset 285429c6_x####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | 21IDG |

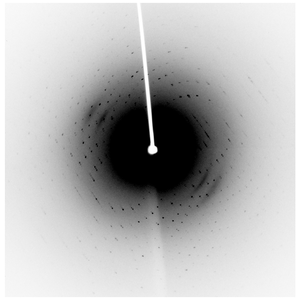

Dataset 285429c6_y####.img details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -90.0 |
| Kappa / Chi [°] | 5.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | 21IDG |

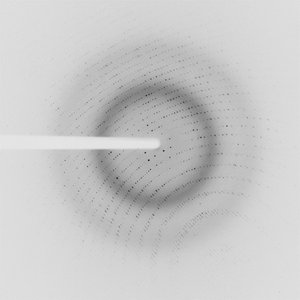

Dataset izz8-4.### details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 150.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2016-11-29 |
| Equipment | 21IDG |
