Diffraction project datasets 5u2w

  • Resolution: 1.55 Å
  • Space group: C 1 2 1
Download all images (3.4 GB)

PDB website for 5U2W

doi:10.18430/M35U2W

Project details

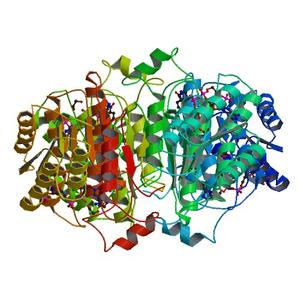

Title Crystal structure of a Short chain dehydrogenase from Burkholderia cenocepacia J2315 in complex with NADP
Authors Abendroth, J., Horanyi, P.S., Lorimer, D.D., Edwards, T.E.
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 136.97 x 72.37 x 100.53
Unit cell angles [°] 90.0, 100.9, 90.0

Dataset 285574g2_aa_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -110.0
Kappa / Chi [°] 30.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 285574g2_x_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -110.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

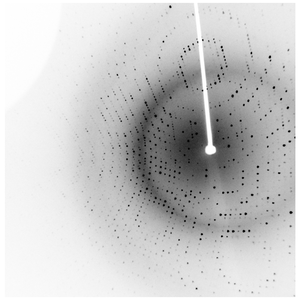

Dataset 285574g2_y_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -110.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

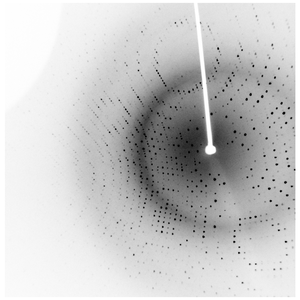

Dataset 285574g2_z_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -110.0
Kappa / Chi [°] 20.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
