Diffraction project datasets 5ssl

  • Resolution: 1.15 Å
  • Space group: P 43
Download all images (7.1 GB)

Uniprot website for P0DTD1
PDB website for 5SSL
PDB validation report for 5SSL

doi:10.18430/m35ssl

Project details

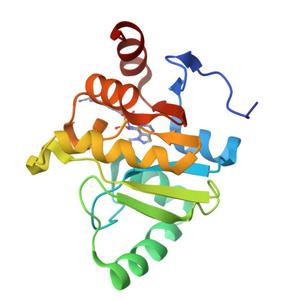

Title PanDDA analysis group deposition -- Crystal structure of SARS-CoV-2 NSP3 macrodomain in complex with ZINCoj00000doMWF
Authors Correy, G.J., Fraser, J.S.
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 88.82 x 88.82 x 39.28
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset AML001_02_1_#####.cbf details

Number of frames 36 (1 - 36)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 75 (38 - 112)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 54 (114 - 167)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 35 (169 - 203)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 73 (205 - 277)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 41 (279 - 319)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 135 (321 - 455)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 30 (457 - 486)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 84 (488 - 571)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 46 (573 - 618)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 45 (620 - 664)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 75 (666 - 740)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 48 (742 - 789)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 33 (791 - 823)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset AML001_02_1_#####.cbf details

Number of frames 33 (825 - 857)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

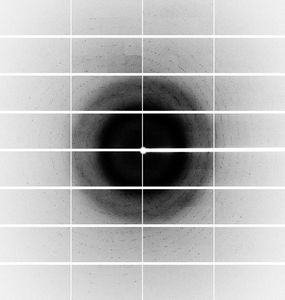

Dataset AML001_02_1_#####.cbf details

Number of frames 30 (859 - 888)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 321.600006
Wavelength [Å] 0.88557
Equipment BL12-1

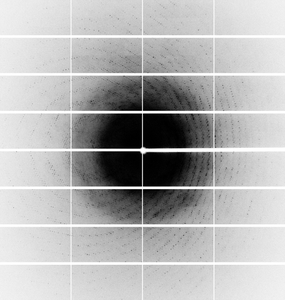

Dataset FRS019_04_1_#####.cbf details

Number of frames 900 (1 - 900)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 260.0
Wavelength [Å] 0.88557
Equipment BL12-1
