Diffraction project datasets 5ssg

  • Resolution: 1.15 Å
  • Space group: P 43
Download all images (7.2 GB)

Uniprot website for P0DTD1
PDB website for 5SSG
PDB validation report for 5SSG

doi:10.18430/m35ssg

Project details

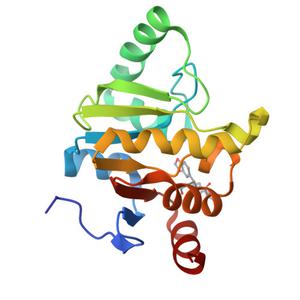

Title PanDDA analysis group deposition -- Crystal structure of SARS-CoV-2 NSP3 macrodomain in complex with ZINCpv000006Li5M - (R,R) isomer
Authors Correy, G.J., Fraser, J.S.
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 88.76 x 88.76 x 39.39
Unit cell angles [°] 90.0, 90.0, 90.0

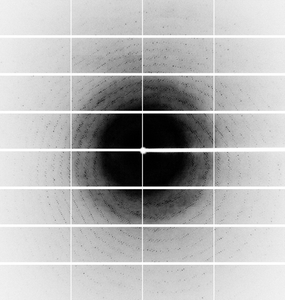

Dataset FRS011_02_1_#####.cbf details

Number of frames 900 (1 - 900)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 260.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 23 (1 - 23)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 33 (25 - 57)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 30 (59 - 88)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 116 (101 - 216)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 115 (218 - 332)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 105 (334 - 438)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 48 (446 - 493)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 66 (495 - 560)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 114 (562 - 675)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 75 (677 - 751)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 30 (753 - 782)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_14_1_#####.cbf details

Number of frames 53 (784 - 836)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1

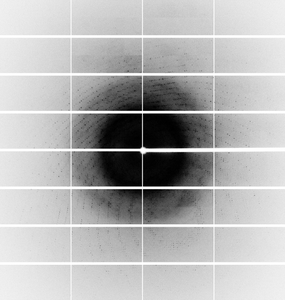

Dataset FRS012_14_1_#####.cbf details

Number of frames 63 (838 - 900)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 337.400024
Wavelength [Å] 0.88557
Equipment BL12-1
