Diffraction project datasets 5ssd
- Resolution: 1.15 Å
- Space group: P 43
Uniprot website for P0DTD1
PDB website for 5SSD
PDB validation report for 5SSD
doi:10.18430/m35ssd
Project details

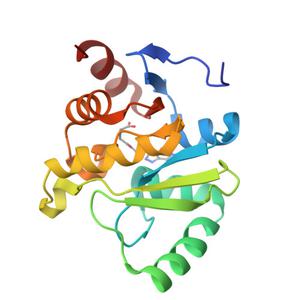

| Title | PanDDA analysis group deposition -- Crystal structure of SARS-CoV-2 NSP3 macrodomain in complex with ZINCm4000007vvRA - (R,S) isomer |
| Authors | Correy, G.J., Fraser, J.S. |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 88.73 x 88.73 x 39.43 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

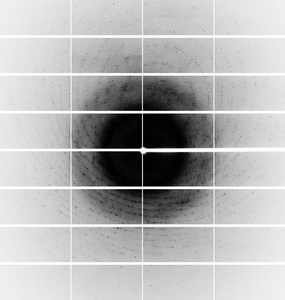

Dataset FRS012_11_1_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 270.0 |
| Wavelength [Å] | 0.88557 |
| Equipment | BL12-1 |

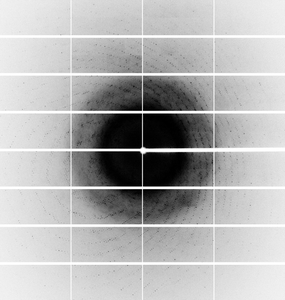

Dataset FRS012_12_1_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 330.0 |
| Wavelength [Å] | 0.88557 |
| Equipment | BL12-1 |
