Diffraction project datasets 5ssc

  • Resolution: 1.15 Å
  • Space group: P 43
Download all images (7.2 GB)

Uniprot website for P0DTD1
PDB website for 5SSC
PDB validation report for 5SSC

doi:10.18430/m35ssc

Project details

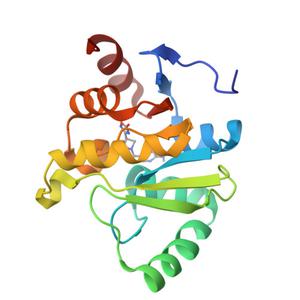

Title PanDDA analysis group deposition -- Crystal structure of SARS-CoV-2 NSP3 macrodomain in complex with ZINCk500000doQ8X
Authors Correy, G.J., Fraser, J.S.
R / Rfree 0.15 / 0.17
Unit cell edges [Å] 88.78 x 88.78 x 39.05
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset FRS012_07_1_#####.cbf details

Number of frames 337 (1 - 337)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 417.600006
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS012_07_1_#####.cbf details

Number of frames 449 (339 - 787)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 417.600006
Wavelength [Å] 0.88557
Equipment BL12-1

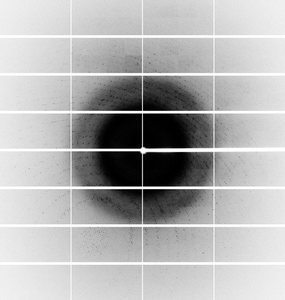

Dataset FRS012_07_1_#####.cbf details

Number of frames 112 (789 - 900)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 417.600006
Wavelength [Å] 0.88557
Equipment BL12-1

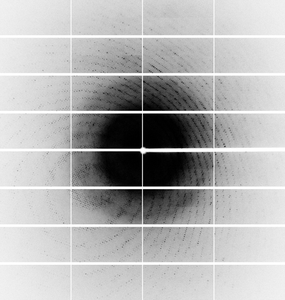

Dataset FRS012_08_1_#####.cbf details

Number of frames 900 (1 - 900)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 50.0
Wavelength [Å] 0.88557
Equipment BL12-1
