Diffraction project datasets 5ss5
Project details
| Title |

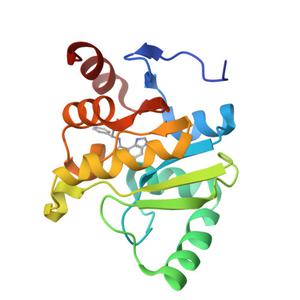

PanDDA analysis group deposition -- Crystal structure of SARS-CoV-2 NSP3 macrodomain in complex with ZINCpE000000mAwk - (S) isomer |
| Authors |
Correy, G.J., Fraser, J.S. |
| R / Rfree |
0.14 / 0.16 |
| Unit cell edges [Å] |
88.64 x
88.64 x
39.08
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

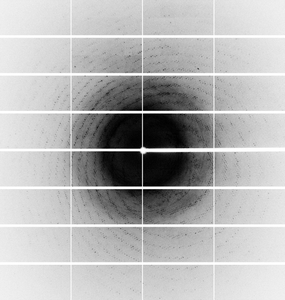

Dataset FRS013_08_1_#####.cbf details
| Number of frames |
900 (1 - 900) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.20 |
| Omega [°] |
160.0 |
| Wavelength [Å] |
0.88557 |
| Equipment |
BL12-1
|
Dataset FRS013_13_1_#####.cbf details
| Number of frames |
80 (1 - 80) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.20 |
| Omega [°] |
225.199997 |
| Wavelength [Å] |
0.88557 |
| Equipment |
BL12-1
|
Dataset FRS013_13_1_#####.cbf details
| Number of frames |
265 (82 - 346) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.20 |
| Omega [°] |
225.199997 |
| Wavelength [Å] |
0.88557 |
| Equipment |
BL12-1
|
Dataset FRS013_13_1_#####.cbf details
| Number of frames |
378 (348 - 725) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.20 |
| Omega [°] |
225.199997 |
| Wavelength [Å] |
0.88557 |
| Equipment |
BL12-1
|

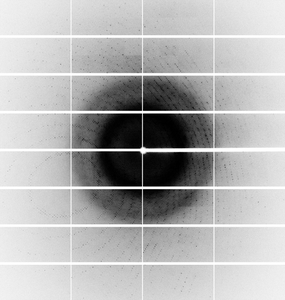

Dataset FRS013_13_1_#####.cbf details
| Number of frames |
165 (727 - 891) |
| Distance [mm] |
160.0 |
| Oscillation width [°] |
0.20 |
| Omega [°] |
225.199997 |
| Wavelength [Å] |
0.88557 |
| Equipment |
BL12-1
|
