Diffraction project datasets 5ss1

  • Resolution: 1.15 Å
  • Space group: P 43
Download all images (7.0 GB)

Uniprot website for P0DTD1
PDB website for 5SS1
PDB validation report for 5SS1

doi:10.18430/m35ss1

Project details

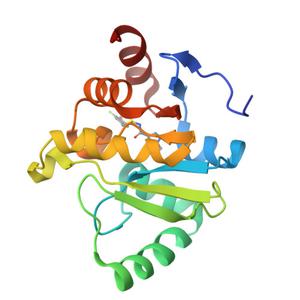

Title PanDDA analysis group deposition -- Crystal structure of SARS-CoV-2 NSP3 macrodomain in complex with ZINCou000000a2Hm
Authors Correy, G.J., Fraser, J.S.
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 88.63 x 88.63 x 39.02
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset FRS013_02_1_#####.cbf details

Number of frames 24 (6 - 29)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 32 (38 - 69)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 33 (80 - 112)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 24 (129 - 152)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 26 (205 - 230)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 33 (245 - 277)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 32 (328 - 359)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 41 (370 - 410)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 32 (419 - 450)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 21 (488 - 508)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 22 (510 - 531)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 22 (550 - 571)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 24 (626 - 649)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 32 (709 - 740)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 26 (747 - 772)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS013_02_1_#####.cbf details

Number of frames 38 (825 - 862)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

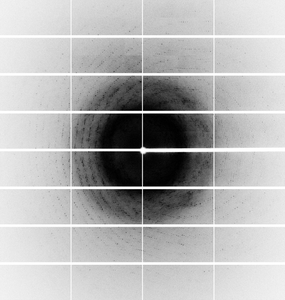

Dataset FRS013_02_1_#####.cbf details

Number of frames 35 (865 - 899)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 432.799988
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 22 (1 - 22)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 26 (25 - 50)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 21 (59 - 79)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 62 (110 - 171)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 34 (176 - 209)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 42 (220 - 261)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 67 (266 - 332)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 41 (349 - 389)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 30 (400 - 429)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 47 (446 - 492)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 46 (515 - 560)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 34 (569 - 602)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 66 (605 - 670)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 41 (679 - 719)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 22 (730 - 751)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 27 (756 - 782)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

Dataset FRS014_16_1_#####.cbf details

Number of frames 53 (784 - 836)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1

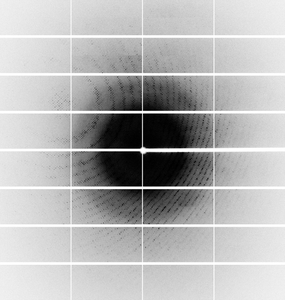

Dataset FRS014_16_1_#####.cbf details

Number of frames 47 (846 - 892)
Distance [mm] 160.0
Oscillation width [°] 0.20
Omega [°] 379.0
Wavelength [Å] 0.88557
Equipment BL12-1
