Diffraction project datasets 5srm
- Resolution: 1.05 Å
- Space group: P 43
PDB website for 5SRM
PDB validation report for 5SRM
doi:10.18430/M35SRM
Project details

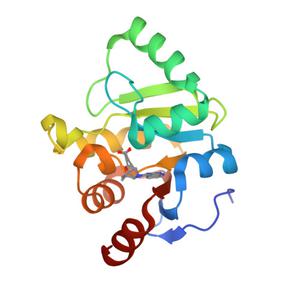

| Title | PanDDA analysis group deposition -- Crystal structure of SARS-CoV-2 NSP3 macrodomain in complex with Z3860662215 - (R) and (S) isomers |
| Authors | Correy, G.J., Fraser, J.S. |
| R / Rfree | 0.13 / 0.15 |
| Unit cell edges [Å] | 88.78 x 88.78 x 39.55 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

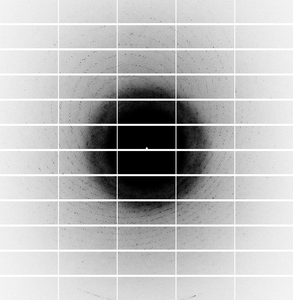

Dataset FRS005_12_1_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 175.4 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 20.9999 |
| Phi [°] | 20.9999 |
| Wavelength [Å] | 0.88557 |
| Experiment Date | 2021-11-11 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |
