Diffraction project datasets 5ig2
- Resolution: 1.8 Å
- Space group: C 2 2 21
PDB website for 5IG2
PDB validation report for 5IG2
doi:10.18430/M35IG2
Project details
| Title | Crystal structure of a short chain dehydrogenase/reductase SDR from Burkholderia phymatum in complex with NAD |
| Authors | Mayclin, S.J., Dranow, D.M., Lorimer, D.D., Edwards, T.E. |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 83.52 x 187.79 x 108.26 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

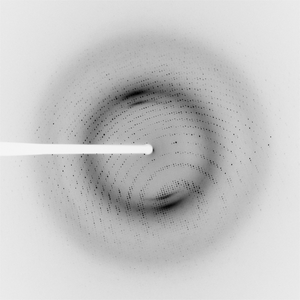

Dataset kx5-2.### details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 140.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2016-02-04 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
