Diffraction project datasets 5hx9
- Resolution: 1.8 Å
- Space group: P 21 21 21
PDB website for 5HX9
PDB validation report for 5HX9
doi:10.18430/M35HX9
Project details

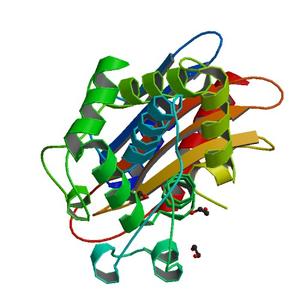

| Title | Crystal structure of Beta-lactamase from Burkholderia vietnamiensis |
| Authors | Conrady, D.G., Abendroth, J., Lorimer, D., Edwards, T.E. |
| R / Rfree | 0.15 / 0.20 |
| Unit cell edges [Å] | 41.50 x 63.31 x 99.18 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

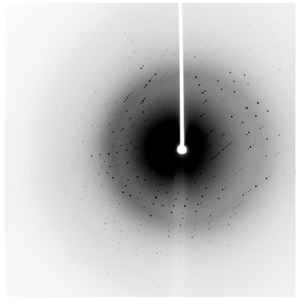

Dataset 265160h9_x####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -100.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

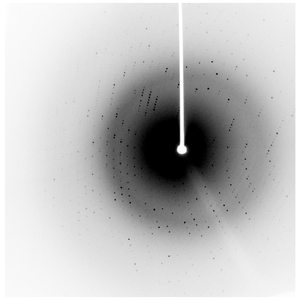

Dataset 265160h9_z####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -100.0 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
