Diffraction project datasets 5ha4

  • Method: Molecular Replacement
  • Resolution: 1.85 Å
  • Space group: P 21 21 21
Download all images (3.1 GB)

PDB website for 5HA4
PDB validation report for 5HA4

doi:10.18430/M35HA4

Project details

Title Structure of a diaminopimelate epimerase from Acinetobacter baumannii
Authors Mayclin, S.J., Lorimer, D.D., Edwards, T.E.
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 70.38 x 96.18 x 106.24
Unit cell angles [°] 90.0, 90.0, 90.0

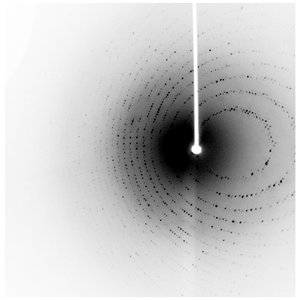

Dataset 265800f4_x####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -105.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 265800f4_xx####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -100.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

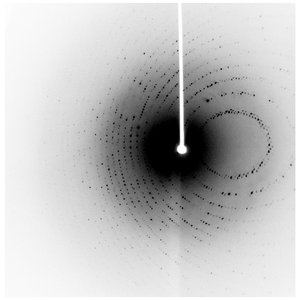

Dataset 265800f4_yy####.img details

Number of frames 1440 (1 - 1440)
Distance [mm] 50.0
Oscillation width [°] 0.25
Omega [°] -100.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
