Diffraction project datasets 5cm7

  • Method: Molecular Replacement
  • Resolution: 1.55 Å
  • Space group: P 1 21 1
Download all images (2.5 GB)

PDB website for 5CM7

doi:10.18430/M35CM7

Project details

Title Structure of thiamine-monophosphate kinase from Acinetobacter baumannii in complex with adenosine diphosphate (ADP) and thiamine diphosphate (TPP)
Authors Abendroth, J., Horanyi, P.S., Lorimer, D.D., Edwards, T.E.
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 50.75 x 117.12 x 55.89
Unit cell angles [°] 90.0, 108.6, 90.0

Dataset 264490e5_x####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

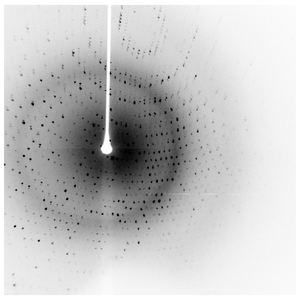

Dataset 264490e5_x#####.img details

Number of frames 360 (20001 - 20360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

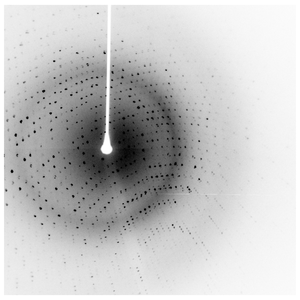

Dataset 264490e5_y####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Kappa / Chi [°] 15.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

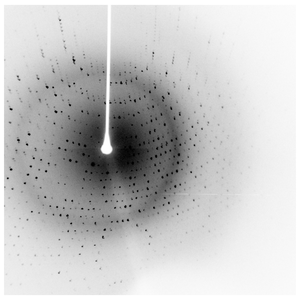

Dataset 264490e5_y#####.img details

Number of frames 360 (20001 - 20360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Kappa / Chi [°] 15.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

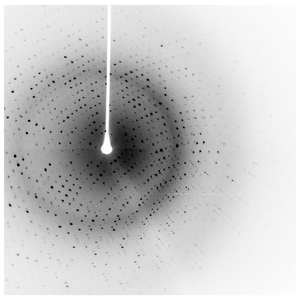

Dataset 264490e5_z####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Kappa / Chi [°] 30.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

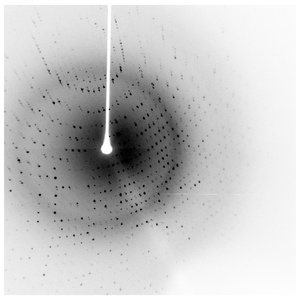

Dataset 264490e5_z#####.img details

Number of frames 360 (20001 - 20360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Kappa / Chi [°] 30.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
