Diffraction project datasets 4ziy
- Method: SAD
- Resolution: 1.85 Å
- Space group: P 32 2 1
PDB website for 4ZIY
PDB validation report for 4ZIY
doi:10.18430/M34ZIY
Project details

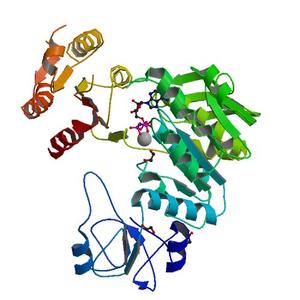

| Title | Structure of UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase from Acinetobacter baumannii |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID), Abendroth, J., Clifton, M.C., Lorimer, D.D., Edwards, T.E. |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 86.09 x 86.09 x 131.01 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

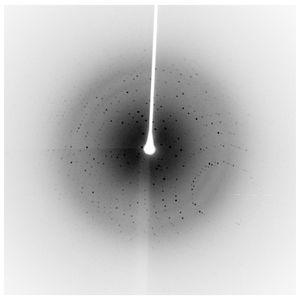

Dataset 262682g4_y####.img details
| Number of frames | 621 (100 - 720) |
| Distance [mm] | 55.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -65.25 |
| Wavelength [Å] | 1.54178 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |

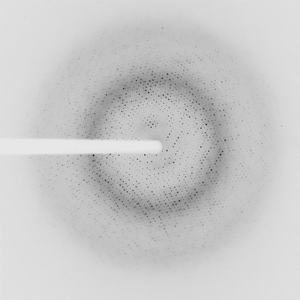

Dataset rrn3-1.### details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 225.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 75.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2015-04-16 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
