Diffraction project datasets 4xxp

  • Method: Molecular Replacement
  • Resolution: 1.6 Å
  • Space group: P 1 21 1
Download all images (2.6 GB)

PDB website for 4XXP
PDB validation report for 4XXP

doi:10.18430/M34XXP

Project details

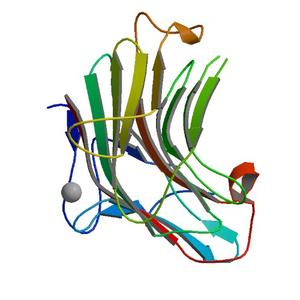

Title Crystal Structure of an Uncharacterized Protein (Rv0315 ortholog) from Mycobacterium paratuberculosis
Authors SSGCID, Dranow, D.M., Lorimer, D., Edwards, T.E.
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 36.03 x 49.53 x 55.31
Unit cell angles [°] 90.0, 95.2, 90.0

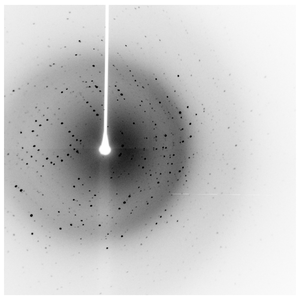

Dataset 252788c1_x####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

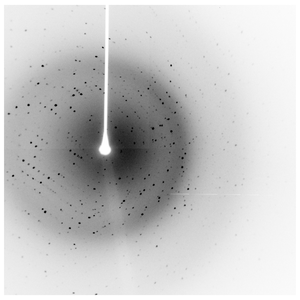

Dataset 252788c1_y####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

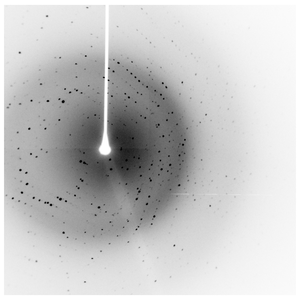

Dataset 252788c1_z####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -75.0
Kappa / Chi [°] 20.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
