Diffraction project datasets 4xin

  • Method: SAD
  • Resolution: 1.5 Å
  • Space group: P 1
Download all images (7.0 GB)

PDB website for 4XIN
PDB validation report for 4XIN

doi:10.18430/M34XIN

Project details

Title X-ray Crystal Structure of an LpqH orthologue from Mycobacterium avium
Authors Fairman, J.W., Abendroth, J., Lorimer, D., Edwards, T.E.
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 32.03 x 37.63 x 41.96
Unit cell angles [°] 110.1, 96.0, 97.1

Dataset 253960h9_hr_aa####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -110.0
Kappa / Chi [°] 30.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

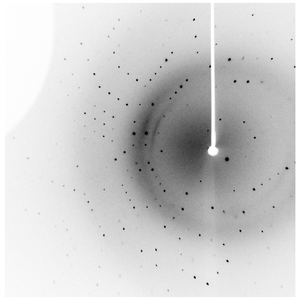

Dataset 253960h9_hr_x####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -110.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

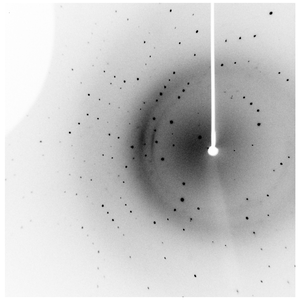

Dataset 253960h9_hr_y####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -110.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

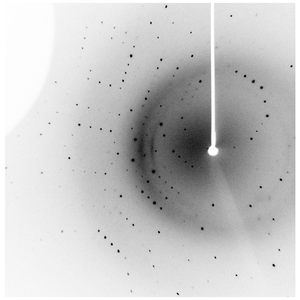

Dataset 253960h9_hr_z####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -110.0
Kappa / Chi [°] 20.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

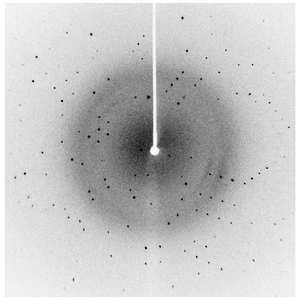

Dataset 253960h9_quick_x####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 1.00
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

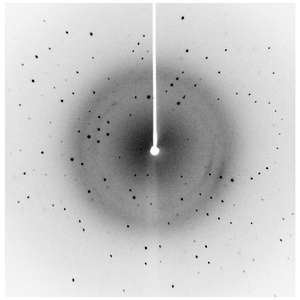

Dataset 253960h9_x####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

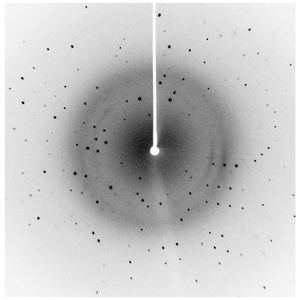

Dataset 253960h9_y####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

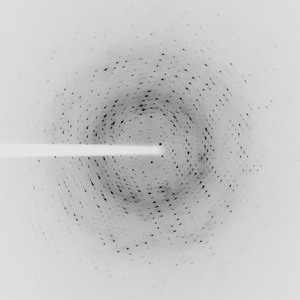

Dataset qnf2-9.### details

Number of frames 270 (1 - 270)
Distance [mm] 190.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97624
Experiment Date 2014-08-21
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
