Diffraction project datasets 4tm5
- Resolution: 1.6 Å
- Space group: C 2 2 21
PDB website for 4TM5
PDB validation report for 4TM5
doi:10.18430/M34TM5
Project details

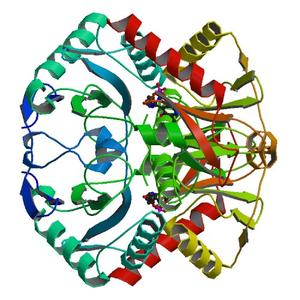

| Title | X-ray crystal structure of a D-amino acid aminotransferase from Burkholderia thailandensis E264 bound to the co-factor pyridoxal phosphate |
| Authors | Fairman, J.W., Taylor, B.M., Edwards, T.E., Lorimer, D. |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 61.83 x 70.02 x 140.01 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

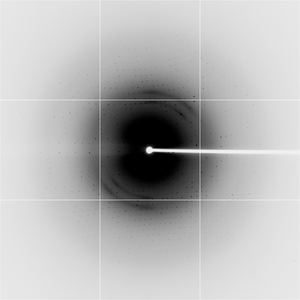

Dataset vpn2-2_11_#####.img details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 45.0 |
| Phi [°] | 45.0 |
| Wavelength [Å] | 1.12709 |
| Equipment | BL7-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
