Diffraction project datasets 4q4l
- Method: Molecular Replacement
- Resolution: 2.2 Å
- Space group: P 21 21 21
PDB website for 4Q4L
PDB validation report for 4Q4L
doi:10.18430/M34Q4L
Project details

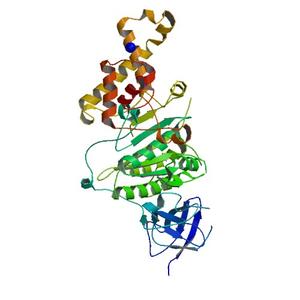

| Title | Crystal structure of an ATP synthase subunit beta 1 (F1-B1) from Burkholderia thailandensis |
| Authors | Edwards, T.E., Abendroth, J., Seattle Structural Genomics Center for Infectious Disease |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 45.42 x 97.99 x 127.54 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

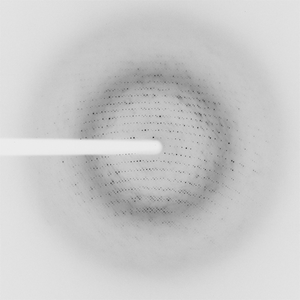

Dataset PPM0-6.### details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 240.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 165.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2014-04-09 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
