Diffraction project datasets 4q15
- Resolution: 2.35 Å
- Space group: P 21 21 21
PDB website for 4Q15
PDB validation report for 4Q15
doi:10.18430/M34Q15
Project details

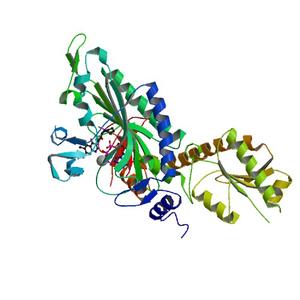

| Title | Crystal Structure of Prolyl-tRNA synthetase (ProRS, Proline--tRNA ligase) from Plasmodium falciparum in complex with Halofuginone and AMPPNP in space group P212121 at 2.35 A |
| Authors | Nakazawa Hewitt, S., Dranow, D.M., Horst, B.G., Abendroth, J.A., Forte, B., Hallyburton, I., Jansen, C., Baragana, B., Choi, R., Rivas, K.L., Hulverson, M.A., Dumais, M., Edwards, T.E., Lorimer, D.D., Fairlamb, A.H., Gray, D.W., Read, K.D., Lehane, A.M., Kirk, K., Myler, P.J., Wernimont, A., Walpole, C.S., Stacy, R., Barrett, L.K., Gilbert, I.H., Van Voorhis, W.C. |
| R / Rfree | 0.20 / 0.22 |
| Unit cell edges [Å] | 76.58 x 78.09 x 167.82 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

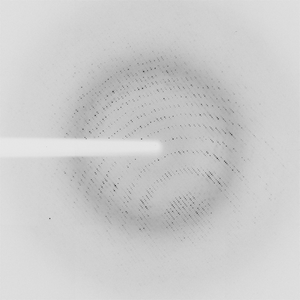

Dataset sls0-6.### details
| Number of frames | 260 (1 - 260) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 3.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2014-03-20 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
