Diffraction project datasets 4pfz
- Method: Molecular Replacement
- Resolution: 1.8 Å
- Space group: C 1 2 1
PDB website for 4PFZ
PDB validation report for 4PFZ
doi:10.18430/M34PFZ
Project details

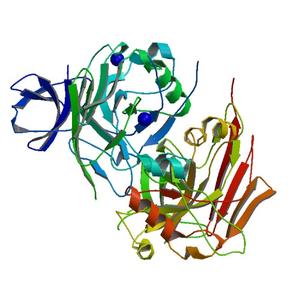

| Title | X-ray Crystal Structure of 5-carboxymethyl-2-hydroxymuconate delta-isomerase from Mycobacterium smegmatis |
| Authors | Horanyi, P.S., Abendroth, J., Lorimer, D., Edwards, T. |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 137.00 x 53.74 x 69.75 |
| Unit cell angles [°] | 90.0, 107.8, 90.0 |

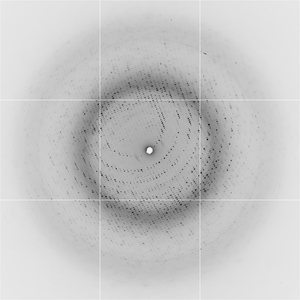

Dataset tlg6_3_1_###.img details
| Number of frames | 219 (1 - 219) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 1.0 |
| Wavelength [Å] | 0.97950 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

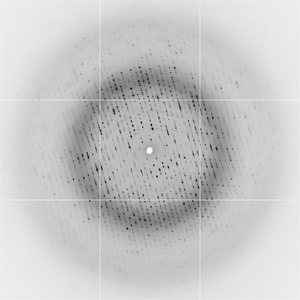

Dataset tlg6_7_1_###.img details
| Number of frames | 219 (1 - 219) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 1.0 |
| Phi [°] | 1.0 |
| Wavelength [Å] | 0.97950 |
| Experiment Date | 2010-05-29 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |
