Diffraction project datasets 4m16
- Method: Molecular Replacement
- Resolution: 1.85 Å
- Space group: P 1 21 1
PDB website for 4M16
PDB validation report for 4M16
doi:10.18430/M34M16
Project details

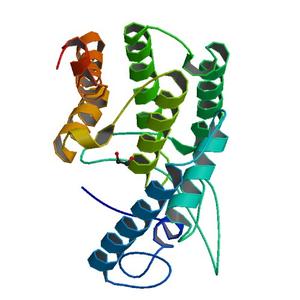

| Title | Crystal Structure of the N-terminal Fic Domain of Bartonella effector protein (Bep); substrate of VirB T4SS (VirB-translocated Bep effector protein) from Bartonella sp. AR 15-3 |
| Authors | Dranow, D.M., Lukacs, C.M., Edwards, T.E., Lorimer, D. |
| R / Rfree | 0.16 / 0.21 |
| Unit cell edges [Å] | 40.24 x 47.48 x 67.97 |
| Unit cell angles [°] | 90.0, 105.6, 90.0 |

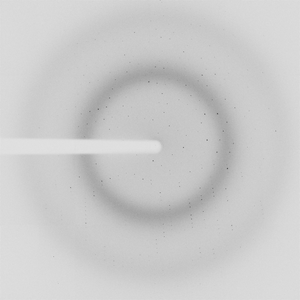

Dataset rqr4-6.### details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 45.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2013-07-31 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
