Diffraction project datasets 4iz9

  • Method: Molecular Replacement
  • Resolution: 1.98 Å
  • Space group: P 41 21 2
Download all images (959.5 MB)

PDB website for 4IZ9


Project details

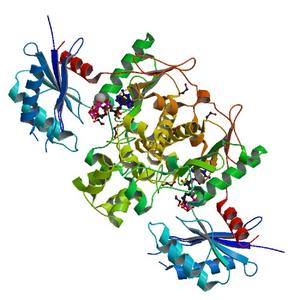

Title Crystal structure of an acetate kinase from Mycobacterium avium bound to an unknown acid-ApCpp conjugate and manganese
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 95.77 x 95.77 x 141.23
Unit cell angles [°] 90.0, 90.0, 90.0

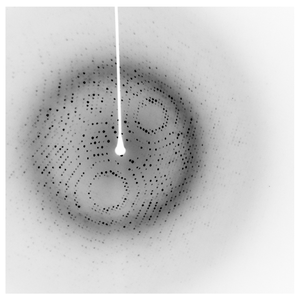

Dataset 236958a4_hr_x####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.25
Omega [°] -80.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
