Diffraction project datasets 4i1y

  • Method: Molecular Replacement
  • Resolution: 2.6 Å
  • Space group: P 1
Download all images (1.7 GB)

PDB website for 4I1Y


Project details

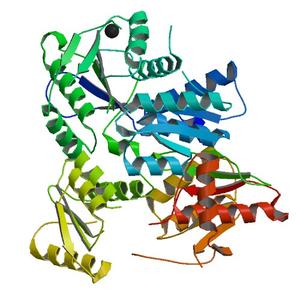

Title The structure of Cysteine synthase from Mycobacterium ulcerans Agy99
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.26 / 0.29
Unit cell edges [Å] 58.97 x 77.90 x 87.10
Unit cell angles [°] 114.2, 104.9, 94.4

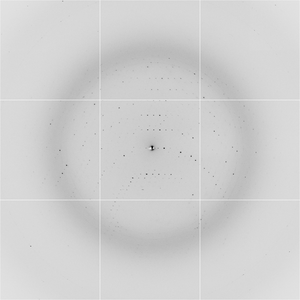

Dataset CoA7_10_1_###.img details

Number of frames 330 (1 - 330)
Distance [mm] 350.0
Oscillation width [°] 1.00
Omega [°] 154.0
Phi [°] 154.0
Wavelength [Å] 0.97740
Experiment Date 2010-12-21
Equipment 5.0.1 at ALS (Advanced Light Source)
