Diffraction project datasets 4h7p
- Method: Molecular Replacement
- Resolution: 1.3 Å
- Space group: P 1 21 1
PDB website for 4H7P
doi:10.18430/M34H7P
Project details

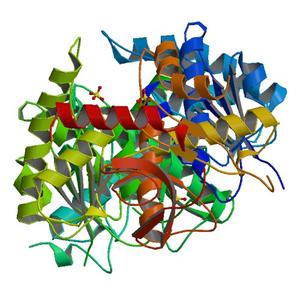

| Title | Crystal structure of a putative Cytosolic malate dehydrogenase from Leishmania major Friedlin |
| Authors | Abendroth, J., Sankaran, B., Staker, B.L., Stewart, L.J., Myler, P., Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 64.58 x 65.66 x 77.65 |
| Unit cell angles [°] | 90.0, 110.1, 90.0 |

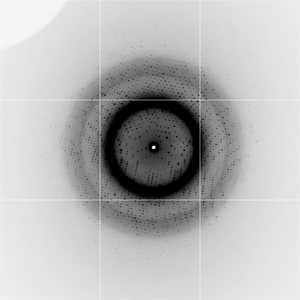

Dataset WTT6-9_1_###.img details
| Number of frames | 280 (1 - 280) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 250.0 |
| Phi [°] | 250.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2012-07-29 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |

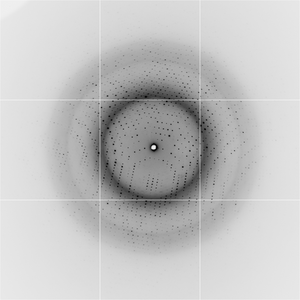

Dataset WTT6-9-low_2_###.img details
| Number of frames | 280 (1 - 280) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 250.0 |
| Phi [°] | 250.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2012-07-29 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |
