Diffraction project datasets 4h3y
- Method: Molecular Replacement
- Resolution: 2.5 Å
- Space group: C 2 2 21
PDB website for 4H3Y
PDB validation report for 4H3Y
doi:10.18430/M34H3Y
Project details

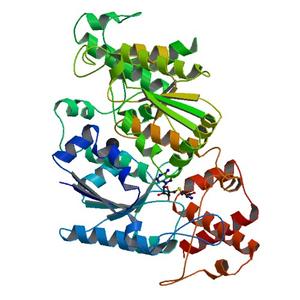

| Title | Crystal structure of an asymmetric dimer of a tRNA (guanine-(N(1)-)-methyltransferase from Burkholderia phymatum bound to S-adenosyl homocystein in one half-site |
| Authors | Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C. |
| R / Rfree | 0.18 / 0.23 |
| Unit cell edges [Å] | 58.97 x 187.40 x 127.64 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

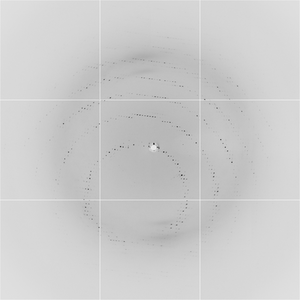

Dataset zjg9-5_1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 340.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 10.0 |
| Phi [°] | 10.0 |
| Wavelength [Å] | 0.99999 |
| Experiment Date | 2012-08-02 |
| Equipment | 5.0.2 at ALS (Advanced Light Source) |
