Diffraction project datasets 4gl8
- Method: Molecular Replacement
- Resolution: 2.2 Å
- Space group: P 21 21 21
PDB website for 4GL8
PDB validation report for 4GL8
doi:10.18430/M34GL8
Project details

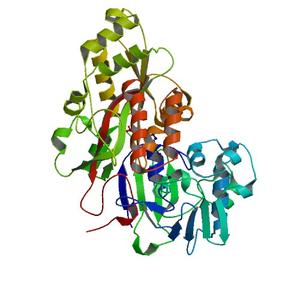

| Title | X-ray crystal structure of a periplasmic oligopeptide-binding protein/Oligopeptide ABC transporter(OppAIV) from Borrelia burgdorferi |
| Authors | Fairman, J.W., Abendroth, J., Sankaran, B., Staker, B.L. |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 99.75 x 103.58 x 104.81 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

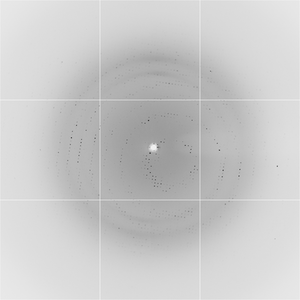

Dataset LWT7-5_1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 330.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 215.0 |
| Phi [°] | 215.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2012-07-28 |
| Equipment | 5.0.1 at ALS (Advanced Light Source) |
