Diffraction project datasets 4ghk

  • Method: Molecular Replacement
  • Resolution: 2.25 Å
  • Space group: P 21 21 21
Download all images (934.8 MB)

PDB website for 4GHK

doi:10.18430/M34GHK

Project details

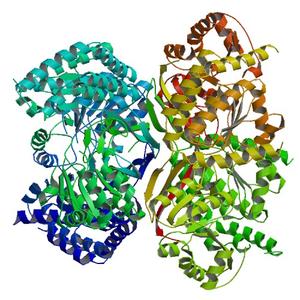

Title X-ray Crystal Structure of Gamma-glutamyl phosphate reductase from Burkholderia thailandensis
Authors Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C.
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 85.41 x 142.46 x 154.76
Unit cell angles [°] 90.0, 90.0, 90.0

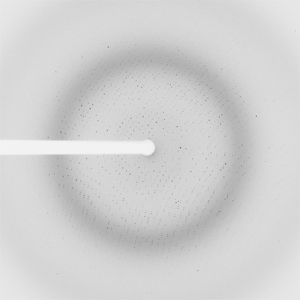

Dataset klb5-1-snaps.### details

Number of frames 200 (1 - 200)
Distance [mm] 240.0
Oscillation width [°] 1.00
Phi [°] 120.0
Wavelength [Å] 0.97872
Experiment Date 2012-07-20
Equipment 21-ID-F at APS (Advanced Photon Source)
