Diffraction project datasets 4fi5
- Method: Molecular Replacement
- Resolution: 2.2 Å
- Space group: P 32 2 1
PDB website for 4FI5
PDB validation report for 4FI5
doi:10.18430/M34FI5
Project details

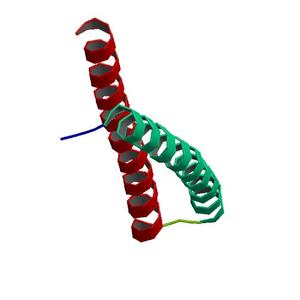

| Title | Crystal structure of the N-terminal domain of Hantaan virus strain 76-118 nucleoprotein |
| Authors | Edwards, T.E., Abendroth, J., Altamura, L., Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.19 / 0.24 |
| Unit cell edges [Å] | 77.40 x 77.40 x 36.52 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

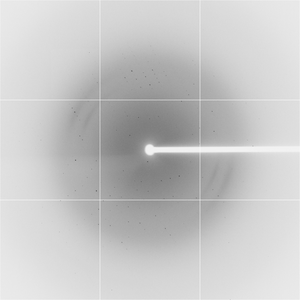

Dataset hky1-5_7_#####.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 50.0 |
| Phi [°] | 50.0 |
| Wavelength [Å] | 1.03317 |
| Equipment | BL7-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
