Diffraction project datasets 4eo9

  • Method: Molecular Replacement
  • Resolution: 2.45 Å
  • Space group: P 42 2 2
Download all images (503.1 MB)

PDB website for 4EO9
PDB validation report for 4EO9

doi:10.18430/M34EO9

Project details

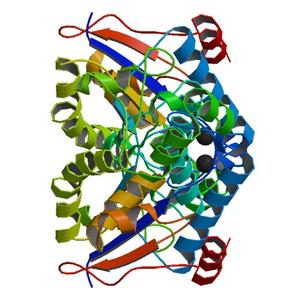

Title Crystal structure of a phosphoglycerate mutase gpm1 from Mycobacterium leprae
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 80.31 x 80.31 x 119.33
Unit cell angles [°] 90.0, 90.0, 90.0

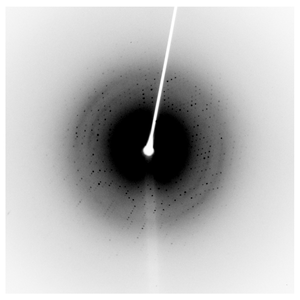

Dataset 233299a8_y_####.img details

Number of frames 394 (1 - 394)
Distance [mm] 50.0
Oscillation width [°] 0.25
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
