Diffraction project datasets 4ed9

  • Method: SAD
  • Resolution: 1.95 Å
  • Space group: C 1 2 1
Download all images (1.3 GB)

PDB website for 4ED9

doi:10.18430/M34ED9

Project details

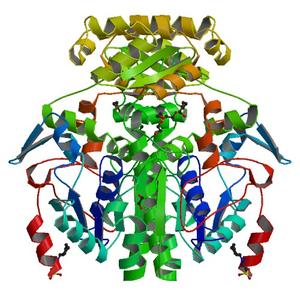

Title Crystal structure of a CAIB/BAIF family protein from Brucella suis
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID), Fox III, D., Gardberg, A., Staker, B., Stewart, L.
R / Rfree 0.17 / 0.22
Unit cell edges [Å] 93.40 x 62.54 x 70.31
Unit cell angles [°] 90.0, 117.8, 90.0

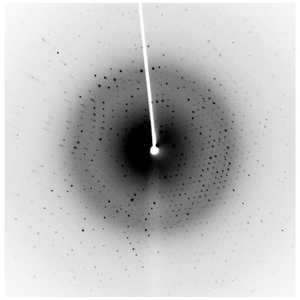

Dataset 230921a4_x####.img details

Number of frames 362 (1 - 362)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

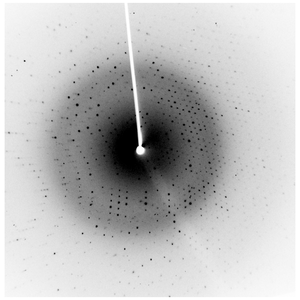

Dataset 230921a4_y####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -85.0
Kappa / Chi [°] 30.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

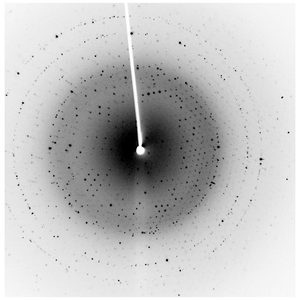

Dataset 230921a4_z####.img details

Number of frames 360 (401 - 760)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -85.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
