Diffraction project datasets 4djt
Project details
| Title |

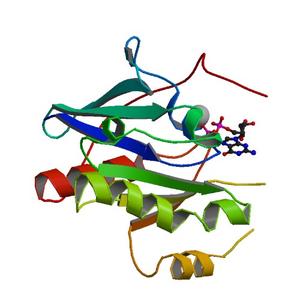

Crystal structure of a nuclear GTP-binding protein from Encephalitozoon cuniculi bound to GDP-Mg2+ |
| Authors |
Edwards, T.E., Abendroth, J., Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree |
0.18 / 0.22 |
| Unit cell edges [Å] |
42.57 x
89.25 x
54.98
|
| Unit cell angles [°] |
90.0,
108.1,
90.0
|

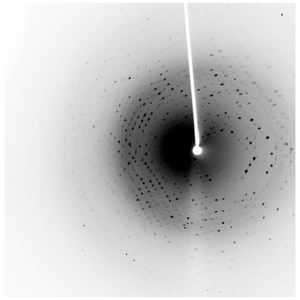

Dataset 225457h2_x####.img details
| Number of frames |
720 (1 - 720) |
| Distance [mm] |
50.0 |
| Oscillation width [°] |
0.50 |
| Omega [°] |
-105.0 |
| Wavelength [Å] |
1.54178 |
| Equipment |
HOME_SOURCE
at HOME_SOURCE (Home Source)
|

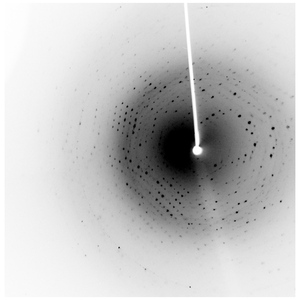

Dataset 225457h2_y####.img details
| Number of frames |
720 (1 - 720) |
| Distance [mm] |
50.0 |
| Oscillation width [°] |
0.50 |
| Omega [°] |
-105.0 |
| Kappa / Chi [°] |
15.0 |
| Wavelength [Å] |
1.54178 |
| Equipment |
HOME_SOURCE
at HOME_SOURCE (Home Source)
|
