Diffraction project datasets 4die

  • Method: Molecular Replacement
  • Resolution: 2.65 Å
  • Space group: P 1 21 1
Download all images (1.2 GB)

PDB website for 4DIE

doi:10.18430/M34DIE

Project details

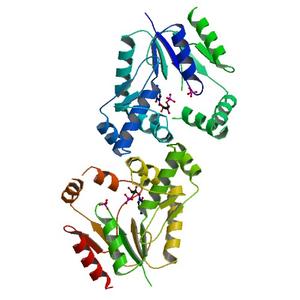

Title Crystal structure of a cytidylate kinase CmK from Mycobacterium abscessus bound to cytidine-5'-monophosphate
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.23 / 0.27
Unit cell edges [Å] 70.76 x 96.52 x 78.79
Unit cell angles [°] 90.0, 97.2, 90.0

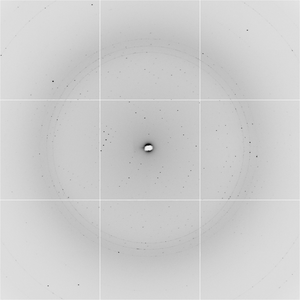

Dataset HXV-2_1_###.img details

Number of frames 220 (1 - 220)
Distance [mm] 390.0
Oscillation width [°] 1.00
Omega [°] 79.44
Phi [°] 79.44
Wavelength [Å] 0.97650
Experiment Date 2011-03-25
Equipment 5.0.3 at ALS (Advanced Light Source)
