Diffraction project datasets 4di1

  • Method: Molecular Replacement
  • Resolution: 2.25 Å
  • Space group: P 21 21 21
Download all images (156.4 MB)

PDB website for 4DI1

doi:10.18430/M34DI1

Project details

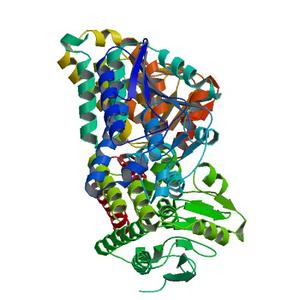

Title Crystal structure of enoyl-CoA hydratase EchA17 from Mycobacterium marinum
Authors Baugh, L., Phan, I., Begley, D.W., Clifton, M.C., Armour, B., Dranow, D.M., Taylor, B.M., Muruthi, M.M., Abendroth, J., Fairman, J.W., Fox, D., Dieterich, S.H., Staker, B.L., Gardberg, A.S., Choi, R., Hewitt, S.N., Napuli, A.J., Myers, J., Barrett, L.K., Zhang, Y., Ferrell, M., Mundt, E., Thompkins, K., Tran, N., Lyons-Abbott, S., Abramov, A., Sekar, A., Serbzhinskiy, D., Lorimer, D., Buchko, G.W., Stacy, R., Stewart, L.J., Edwards, T.E., Van Voorhis, W.C., Myler, P.J.
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 76.87 x 87.50 x 107.39
Unit cell angles [°] 90.0, 90.0, 90.0

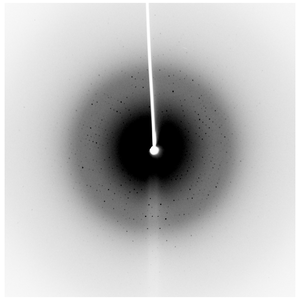

Dataset 219914f12_x####.img details

Number of frames 115 (1 - 115)
Distance [mm] 50.0
Oscillation width [°] 1.00
Omega [°] -30.0
Phi [°] -180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
