Diffraction project datasets 4dgq
- Method: MR
- Resolution: 1.85 Å
- Space group: P 1 21 1
PDB website for 4DGQ
PDB validation report for 4DGQ
doi:10.18430/M34DGQ
Project details

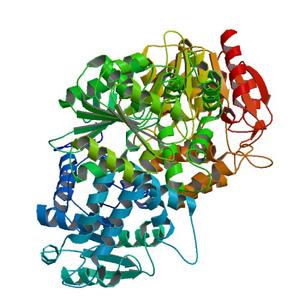

| Title | Crystal structure of Non-heme chloroperoxidase from Burkholderia cenocepacia |
| Authors | Gardberg, A.S., Edwards, T.E., Abendroth, J.A., Staker, B., Stewart, L. |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 60.77 x 111.85 x 80.21 |
| Unit cell angles [°] | 90.0, 111.7, 90.0 |
Dataset 228044h10_aa####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -95.0 |
| Kappa / Chi [°] | 30.0 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

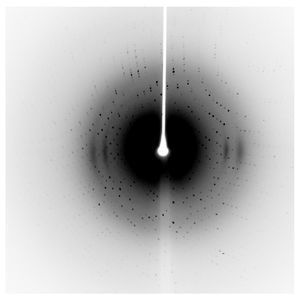

Dataset 228044h10_x####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -95.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

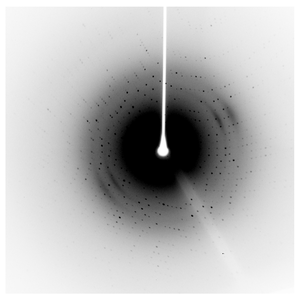

Dataset 228044h10_y####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -95.0 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

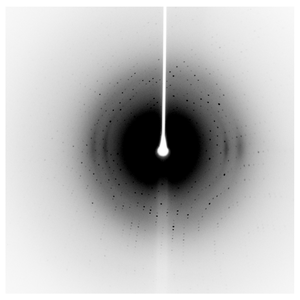

Dataset 228044h10_z####.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -95.0 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
