Diffraction project datasets 46906266_2aml

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: P 21 21 21
Download all images (2.4 GB)

PDB website for 2AML

doi:10.18430/M32AML

Project details

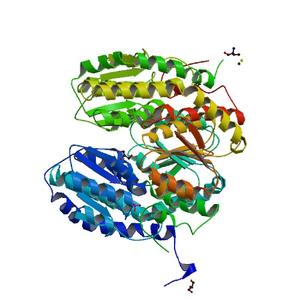

Title Crystal structure of Lmo0035 protein (46906266) from LISTERIA MONOCYTOGENES 4b F2365 at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.14 / 0.17
Unit cell edges [Å] 56.31 x 101.40 x 120.15
Unit cell angles [°] 90.0, 90.0, 90.0

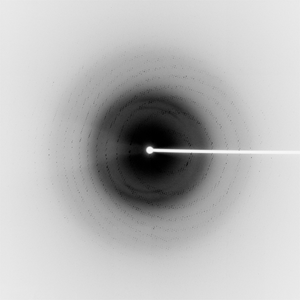

Dataset 17059_1_E1_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 352.0
Wavelength [Å] 0.97932
Experiment Date 2005-07-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

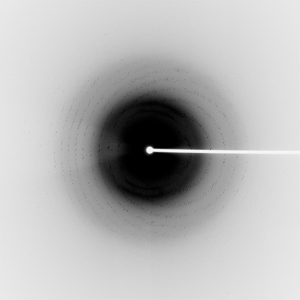

Dataset 17059_1_E2_###.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 352.0
Wavelength [Å] 0.90497
Experiment Date 2005-07-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
