Diffraction project datasets 3vav

  • Method: Molecular Replacement
  • Resolution: 1.8 Å
  • Space group: P 1 21 1
Download all images (1.9 GB)

PDB website for 3VAV

doi:10.18430/M33VAV

Project details

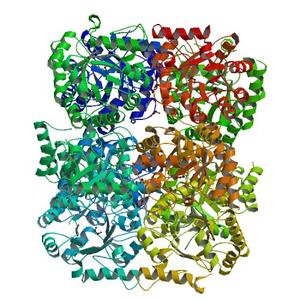

Title Crystal structure of 3-methyl-2-oxobutanoate hydroxymethyltransferase from Burkholderia thailandensis
Authors Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C.
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 81.71 x 174.75 x 104.58
Unit cell angles [°] 90.0, 108.7, 90.0

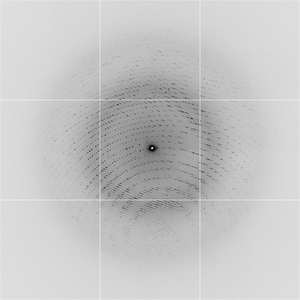

Dataset act6-15_1_###.img details

Number of frames 360 (1 - 360)
Distance [mm] 220.0
Oscillation width [°] 1.00
Omega [°] 200.0
Phi [°] 200.0
Wavelength [Å] 0.97740
Experiment Date 2011-12-10
Equipment 5.0.1 at ALS (Advanced Light Source)
