Diffraction project datasets 3v9o

  • Method: Molecular Replacement
  • Resolution: 1.45 Å
  • Space group: I 4 2 2
Download all images (980.2 MB)

PDB website for 3V9O

doi:10.18430/M33V9O

Project details

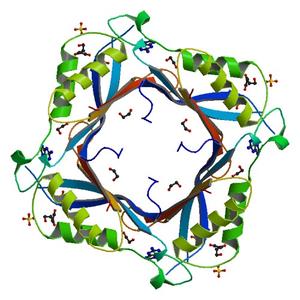

Title Crystal structure of Dihydroneopterin aldolase (BTH_I0291) from Burkholderia thailendensis bound to guanine.
Authors Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C.
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 73.98 x 73.98 x 110.98
Unit cell angles [°] 90.0, 90.0, 90.0

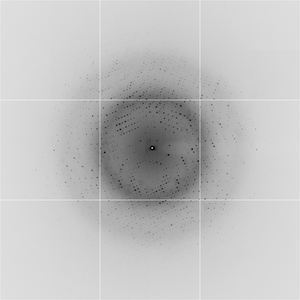

Dataset gaz8-6_1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 180.0
Oscillation width [°] 1.00
Omega [°] -6.0
Phi [°] -6.0
Wavelength [Å] 0.97740
Experiment Date 2011-12-01
Equipment 5.0.1 at ALS (Advanced Light Source)
