Diffraction project datasets 3v8h
- Method: Molecular Replacement
- Resolution: 1.65 Å
- Space group: P 1 21 1
PDB website for 3V8H
PDB validation report for 3V8H
doi:10.18430/M33V8H
Project details

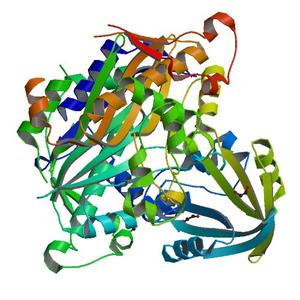

| Title | Crystal structure of Thymidylate Synthase from Burkholderia thailandensis |
| Authors | Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C. |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 59.06 x 107.69 x 117.24 |
| Unit cell angles [°] | 90.0, 98.1, 90.0 |

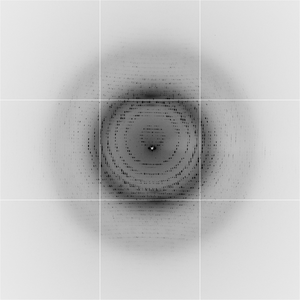

Dataset MMV-4-11_1_###.img details
| Number of frames | 480 (1 - 480) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | -10.0 |
| Phi [°] | -10.0 |
| Wavelength [Å] | 0.97740 |
| Experiment Date | 2011-11-11 |
| Equipment | 5.0.1 at ALS (Advanced Light Source) |
