Diffraction project datasets 3uw2
- Method: Molecular Replacement
- Resolution: 1.95 Å
- Space group: P 21 21 21
PDB website for 3UW2
PDB validation report for 3UW2
doi:10.18430/M33UW2
Project details

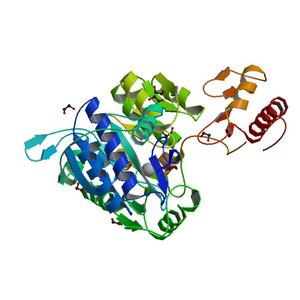

| Title | X-ray Crystal Structure of Phosphoglucomutase/phosphomannomutase family protein (BTH_I1489)from Burkholderia thailandensis |
| Authors | Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C. |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 67.38 x 75.23 x 104.42 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

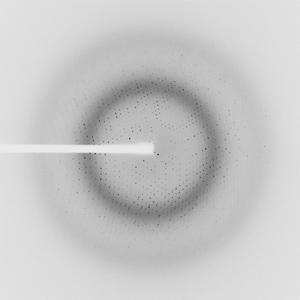

Dataset jut0-6_collect.### details
| Number of frames | 150 (1 - 150) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2011-10-28 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
