Diffraction project datasets 3und
- Method: MR
- Resolution: 2.1 Å
- Space group: P 21 21 21
PDB website for 3UND
PDB validation report for 3UND
doi:10.18430/M33UND
Project details

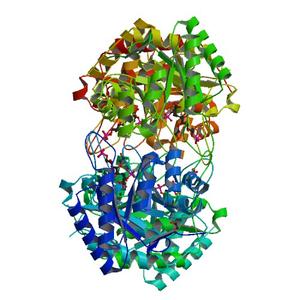

| Title | Substrate-bound crystal structure of 2-dehydro-3-deoxyphosphooctonate aldolase from Burkholderia pseudomallei |
| Authors | Baugh, L., Gallagher, L.A., Patrapuvich, R., Clifton, M.C., Gardberg, A.S., Edwards, T.E., Armour, B., Begley, D.W., Dieterich, S.H., Dranow, D.M., Abendroth, J., Fairman, J.W., Fox, D., Staker, B.L., Phan, I., Gillespie, A., Choi, R., Nakazawa-Hewitt, S., Nguyen, M.T., Napuli, A., Barrett, L., Buchko, G.W., Stacy, R., Myler, P.J., Stewart, L.J., Manoil, C., Van Voorhis, W.C. |
| R / Rfree | 0.17 / 0.19 |
| Unit cell edges [Å] | 46.84 x 146.24 x 178.94 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

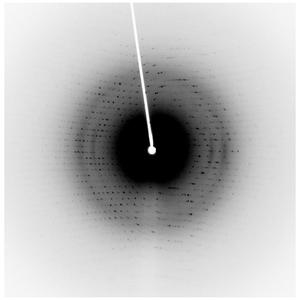

Dataset 227318b6_x####.img details
| Number of frames | 420 (1 - 420) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -45.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

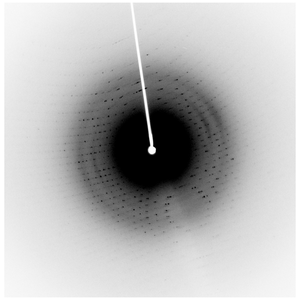

Dataset 227318b6_y####.img details
| Number of frames | 420 (1 - 420) |
| Distance [mm] | 50.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | -45.0 |
| Kappa / Chi [°] | 30.0 |
| Wavelength [Å] | 1.54178 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
